1.1.1 Non-text Content (A)

WCAG 2.0 definition

1.1.1 Non-text Content: All non-text content that is presented to the user has a text alternative that serves the equivalent purpose, except for the situations listed below.

"Non-text content" can mean:

  1. foreground img elements;
  2. background images (including classic "image replacement" techniques and Font Awesome social media icons);
  3. complex images—including canvas elements;
  4. image maps; or
  5. svg, ASCII art, and other image types.

The intent of this Success Criterion is to make information conveyed by non-text content accessible through the use of a text alternative. Text alternatives are a primary way for making information accessible because they can be rendered through any sensory modality (for example, visual, auditory or tactile) to match the needs of the user. Providing text alternatives allows the information to be rendered in a variety of ways by a variety of user agents. For example, a person who cannot see a picture can have the text alternative read aloud using synthesized speech. A person who cannot hear an audio file can have the text alternative displayed so that he or she can read it. In the future, text alternatives will also allow information to be more easily translated into sign language or into a simpler form of the same language.

Note: in the case of non-text content used as the only visual label for interactive controls (e.g. button elements, link elements, input type="image" graphical submit buttons), a failure to provide an appropriate text alternative is a fail for both 1.1.1 Non-text Content and 4.1.2 Name, role, value (level A).

Note: at a basic level, audio and video elements also fall under the "non-text content" term. The presence of an audio/video, as well as its content/meaning, should also be conveyed with a text alternative. For long/complex audio and video elements, WCAG 2.0 has additional success criteria (1.2.1 Audio-only and video-only (prerecorded) (level A), 1.2.2 Captions (prerecorded) (level A), 1.2.3 Audio description or media alternative (prerecorded) (level A), 1.2.4 Captions (live) (level AA), 1.2.5 Audio descriptions (prerecorded) (level AA)). Failure to provide a transcript or similar alternative for time-based media should be reported as a failure against those success criteria, and not against 1.1.1 Non-text Content. However, in the context of 1.1.1 Non-text Content, it is still important that users know what the embedded audio/video is when they encounter it on a page so they can decide what action if any they want to take with it. A text alternative that describes the time-based media and/or gives its title must therefore be provided, and a failure to do so is noted in this criterion as a fail.

Note: if the page does not contain any non-text content, this criterion is marked as not applicable.

Some useful resources on the subject of alternative text:

Tests to perform

This test covers foreground images.

Input into spreadsheet

Fail

Images and image links/buttons:

  • are missing an alt attribute,
  • have an alt="" attribute when the image or button is essential, or
  • that are essential do not have appropriate alt text.
Pass
  • images and image links/buttons are provided with appropriate alt text,
  • images with a sufficient caption or associated text may have alt="", and
  • decorative images have alt="".
N/A
The sample has no images or image links/buttons.

How to test

Use at least one method to identify foreground images and evaluate:

There are three tests to run with WDT:

1. Use Images > Outline Images Without Alt Attributes
Images > Outline Images Without Alt Attributes

This outlines img elements missing an alt attribute.

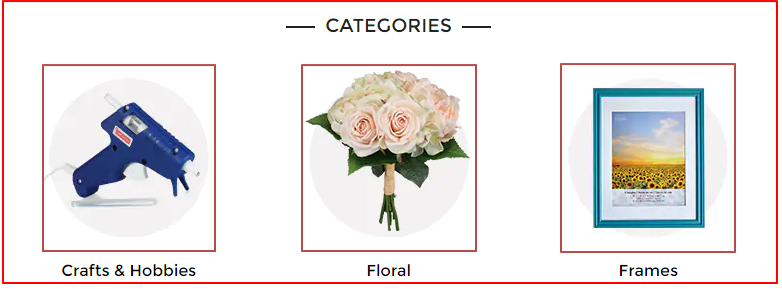

Images without an alt attribute from the Web Developer Toolbar
Outlined images

❌ When "Outline Images Without Alt Attributes" is enabled: images with an red outline fail 1.1.1A.

Make sure to turn off "Outline Images Without Alt Attributes" before proceeding.

2. Use Images > Outline Images With Empty Alt Attributes

This outlines images with empty alt attributes, which hides the image from screen readers.

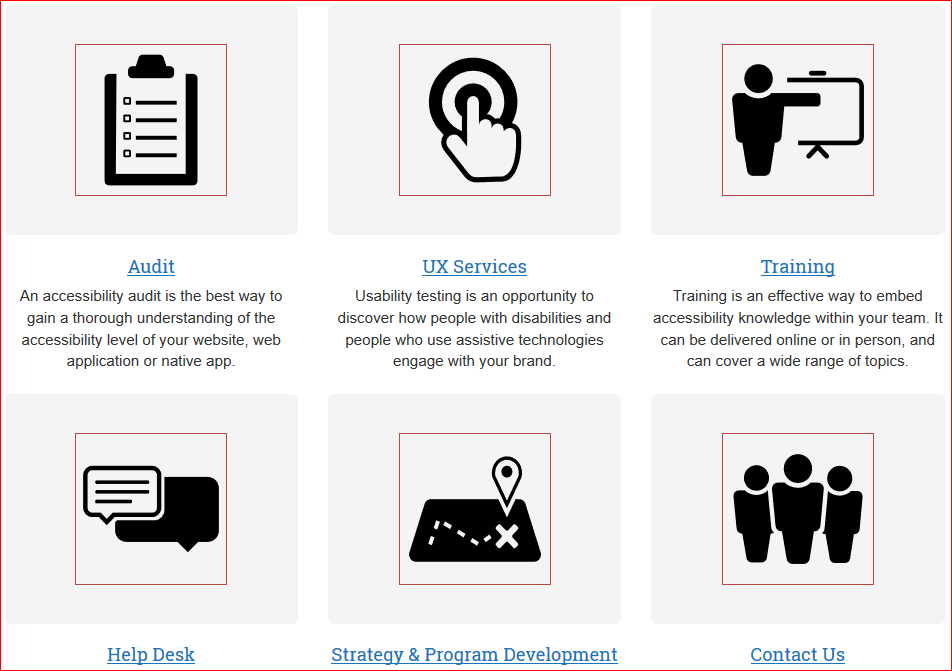

Images with an empty alt attribute are outlined in the Web Developer Toolbar

✔ Non-essential images marked as empty alt attributes pass 1.1.1A.

✔ Images with a sufficient caption or associated text and empty alt attributes pass 1.1.1A.

❌ Essential images marked as empty alt attributes fail 1.1.1A.

Make sure to turn off "Outline Images With Empty Alt Attributes" before proceeding.

3. Use Images > Display Alt Attributes

If an image has an alt attribute, it will appear near the image in a red outline.

Image alt text from Web Developer Toolbar
Bass guitar

✔ Essential images with a correct, concise description pass 1.1.1A.

✔ Non-essential images with alt="" pass 1.1.1A.

✔ Images with a sufficient caption or associated text and alt="" pass 1.1.1A.

❌ Essential images with missing, incorrect, overly verbose, or incomplete descriptions fail 1.1.1A.

What if I see an image, but WDT doesn't detect it?
Some images are not foreground images. They may be background images or constructed in a with a different method (such as svg). Make judgments about standard, foreground images WDT identifies. Later tests in the standards handle background images or differently constructed images.

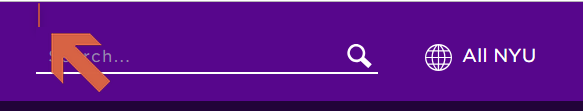

I see small red slashes when I "Display Alt Attributes". What does that mean?
Small red slashes on a webpage with Images > Display Alt Attributes enabled

Occasionally, background or non-standard images cause WDT to create a red slash. You can ignore these slashes for now. Tests later handle background images and non-standard images.

What's the different between a missing alt attribute, an empty alt attribute, and alt=""?
  • A missing alt attributer means the img has no alt attribute at all.
  • An empty alt attribute means the img has an alt attribute, but it has no text (ex. alt=""). Screen readers will skip these images entirely.
  • alt="" is the code for an empty alt attribute. Screen readers will skip these images entirely.
Use Images > Show Images

This visually displays the alt text next to each img element. Further, this triggers an alert that lists the number of images in the page that completely lack an alt attribute.

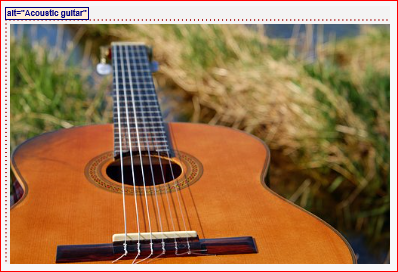

The following screenshot shows an image with the alt text displayed after using the "Show Images" function.

Image alt text from Web Accessibility Toolbar
Acoustic guitar
Use Images > List Images

This opens a new browser tab, listing not only all img elements, but also any input type="image" graphical submit buttons, including their markup in the document.

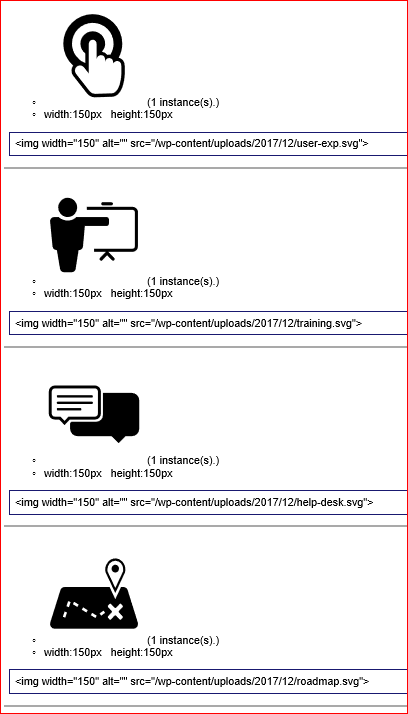

The following screenshot shows a list of images along with the markup displayed after using the "List Images" function.

List images from Web Accessibility Toolbar
List of decorative images

Manually inspect the page's markup (for instance, using the browser's built-in Developer Tools/F12 Tools) and search for any img and input type="image" element.

The following screenshot shows an image being inspected using the browser's built-in developer console.

Using built-in developer tools
Image markup highlighted
Handling Exceptions

For each image or graphical submit button, determine if its alt text is appropriate:

This test checks that essential images are not background images.

How to tell an image is essential

If the image or icon was removed from the page, would any critical information or functionality be lost? If yes, then the image or icon is essential.

Input into spreadsheet

Fail
Background (CSS) images used for content do not have inadequate text equivalents.
  • Essential background images do not have a text alternative.
  • Essential background images have an inadequate or inappropriate text alternative.
  • Decorative background images have been provided with redundant text alternatives.
Pass
All background images used for content have text equivalents in markup, and these text equivalents accurately convey the meaning/purpose/information of the images.
N/A
The sample has no background images.

How to test

Identify background images

Identify all essential background images:

Use Images > Hide Background Images

Visually remove background images and determine if the removal of these images caused essential content to disappear from the page.

The following screenshot shows social media links in a footer that are provided as background images without a text alternative. The social media links are not visible after running the "Hide Background Images" function.

Before removing background images
Social media links visible
After removing background images
Social media links no longer visible

❌ Background images that are essential components fail 1.1.1B.

Background images are often used as contrast for text. If the text content can be highlighted, then it is not considered a fail.

Banner with image as background color
Banner with background purple image removed; options can be highlighted with cursor
Use Images > Outline Background Images
This outlines (most) page elements with a background image.
Use Images > Remove CSS Images

Visually remove CSS background images and determine if the removal of these images caused essential content to disappear from the page.

The following screenshot shows social media links in a footer that are provided as background images without a text alternative. The social media links are not visible after running the "Remove CSS Images" function.

Before removing CSS (background) images
Social media links visible
After removing CSS (background) images
Social media links no longer visible
Image buttons and dynamic controls

Complex images are charts and diagrams present in the page as a single image. Common examples are infographics, flow charts, and graphs. Sometimes these complex images are constructed using canvas, or even div and span tags.

For these complex images, an img alt="..." or canvas aria-label="..." may be insufficient, because the image will require a much longer, more structured text alternative (for example, a data table to represent a complex graph).

Input into spreadsheet

Fail
Complex images lack an appropriate text representation.
  • Complex images do not have alt text.
  • Complex images do not have a proper alternative (such as a data table, list, or link to an accessible alternative)
Pass
Complex images have an appropriate alternative text representation (either in the same page, or linked to from the current page).
N/A
The sample has no complex images.

How to test

Evaluate complex images

Manually inspect the page's code (for instance, using the browser's built-in Developer Tools/F12 Tools) to view the code of the image(s) in question.

✔ Complex img images with an adequate, brief alt attribute pass 1.1.1C.

✔ Complex img images with an adequate longdesc attribute pass 1.1.1C.

✔ Complex images that use non-standard image construction (span, div, etc) or canvas that have an adequate, brief aria-label attribute pass 1.1.1C.

❌ Complex images with alt text, aria-label, or longdesc attributes that are overly verbose or inadequate fail 1.1.1C.

❌ Complex images with no alt text that have are not adequately described in the text, conveyed in a data table or list, or handled in an accessible external resource fail 1.1.1C.

Complex single images
Image with lengthy, complex information
Org chart visually is laid out to look like an inverted pyramid, however, large chunks of text are also in the image.

In the previous example, there is too much content to put into an alt attribute. If a single image has a great deal of information, then evaluate if that text is already mentioned in the main text.

❌ An img image with no adequate alt attribute, a text equivalent on the page, or a longdesc attribute fails 1.1.1C

span or divelements for charts

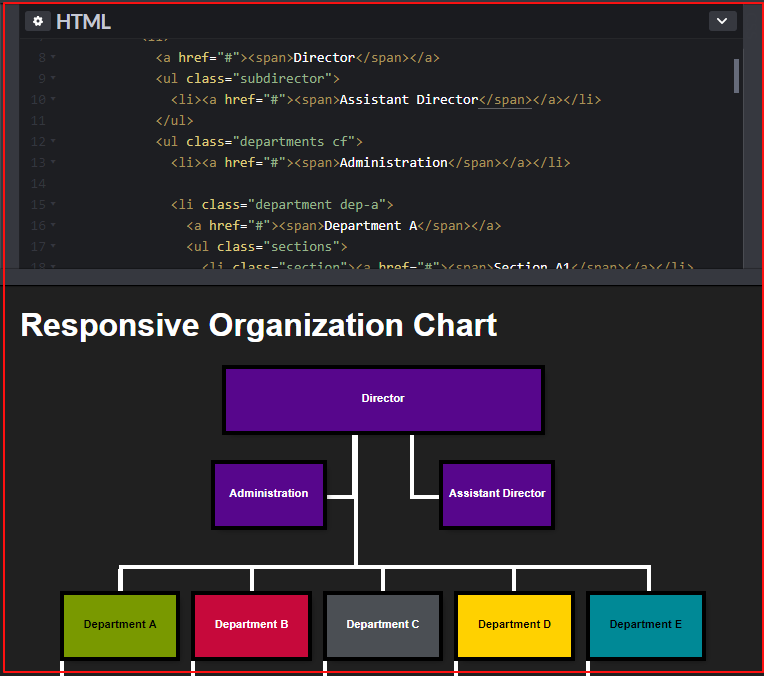

Accessible org chart using ul and span
Org chart visually is laid out to look like a traditional org chart, however, the code structures it as nested unordered lists with spans to input text

In the example, the content is structured as text in lists. Visually it is styled to look like an org chart, but will make sense to a non-visual user.

canvas elements

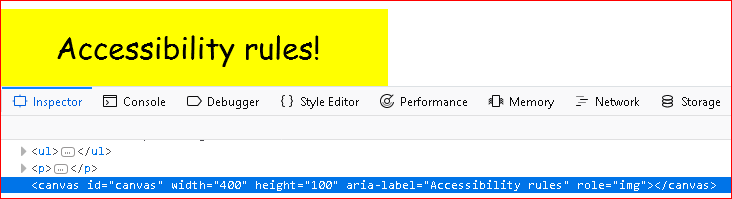

Inspecting the canvas element
Accessibility rules aria-label in canvas tag.

In the canvas example, the aria-label is the only method to provide an alternative description.

Test if image map areas have adequate alternative text.

Input into spreadsheet

Fail
area tags lack adequate alt text:
  • area tags do not have an alt attribute.
  • the alt text for the area tags don't adequately describe the contents.
Pass
All image map area elements have an appropriate alt attribute that describes the meaning/functionality/purpose of the image map area.
N/A
The sample has no image maps.

How to test

How to inspect and evaluate image maps:
Use Images & Show Image Maps

This opens a new tab, listing any server-side and client-side image maps found in the page; for client-side image maps, it further shows the map and its area regions.

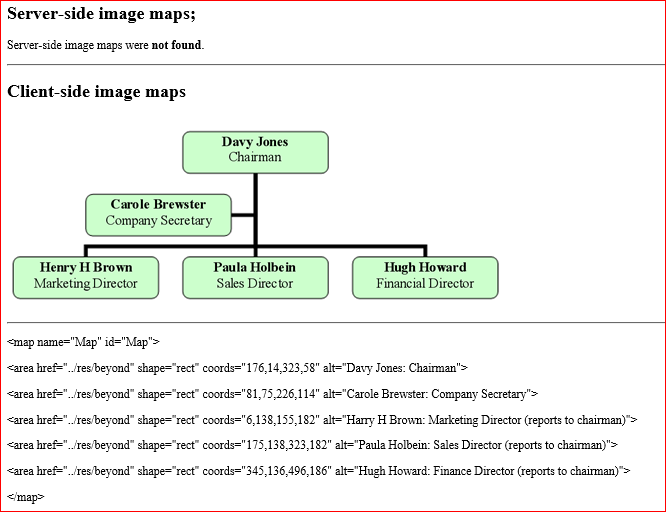

The following screenshot shows a list of images maps along with the markup after using the "Show Image Maps" function.

Image maps
Image map for organization chart

Search for usemap to find any img elements marked as having a client-side image map, then search for map to find the relevant map definition in the document.

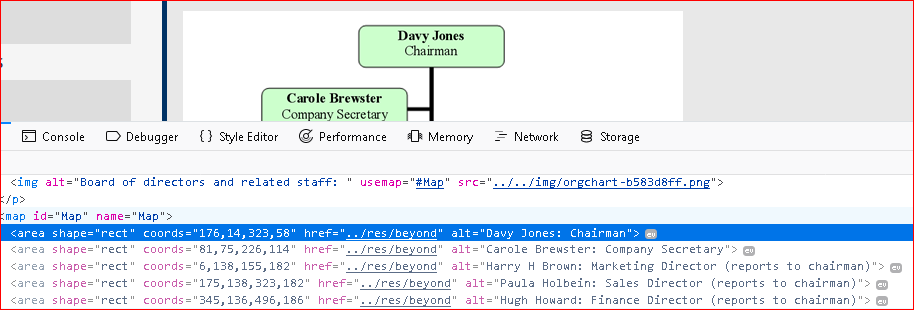

The following screenshot uses the browser's built-in inspection tool to inspect the area elements have appropriate text alternatives.

Manually inspect image map
Browser markup inspector

❌ area tags without adequate alt text fail 1.1.1D.

This test focuses on images/graphical elements implemented using alternative/advanced methods such as "ASCII art" (use of text characters to create a graphic), svg, canvas, or even styled non-semantic elements such as div or span elements.

Input into spreadsheet

Fail
Alternative images/graphical elements lack an appropriate alternative text representation.
Pass
Alternative images/graphical elements have an appropriate alternative text representation.
N/A
The sample has no alternative graphic elements.

How to test

Identify SVGs and other previously missed images

In general, if after following all other test procedures, there are still images/graphical elements left in the page which have not been checked:

svg images
If the svg is nested within another element:

An aria-label="..." can be used to give the collection of elements a recognizable label.

SVG nested within div and a elements has aria-label
Stand-alone svg accessibility

An svg needs:

  • a title tag (required)
  • a desc tag (optional)

Full accessibility:

  • title and desc each need unique ids,
  • an aria-labelledby="..." atrribute references the title and desc ids, and
  • non-interactive svg images should have role="img".

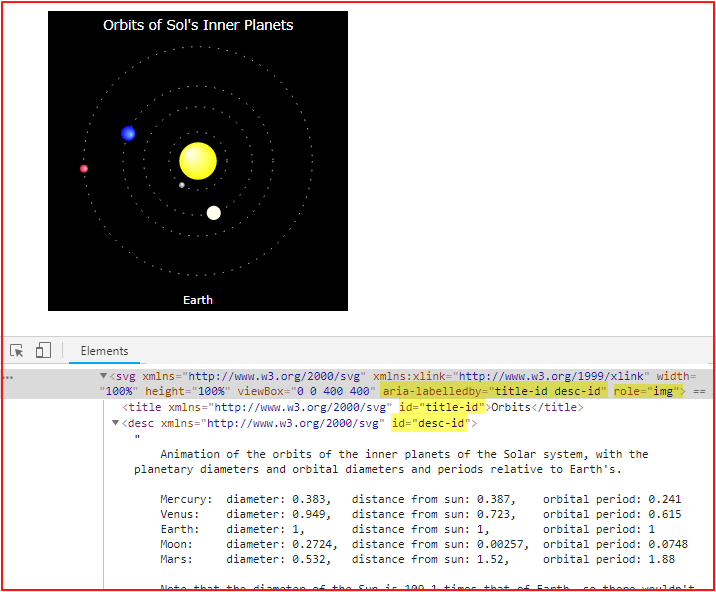

SVG has title and desc attributes, each with an id referenced by the aria-labelledby="..." attribute, with a role="img" attribute to indicate image description is sufficient.
Solar system SVG example with code.

Refer to Using ARIA to enhance SVG accessibility for further details.

ASCII art

"ASCII art" should be hidden from assistive technologies using aria-hidden="true" (to avoid the characters being read out/announced) or aria-label="..." (to have the screen reader read out something different than the characters).

For example: <span aria-label="(shrug emoticon)">¯\_(ツ)_/¯</span>.

✔ svg images with proper title tags (and desc tags where needed) with aria-labelledby="..." pass 1.1.1E.

✔ ASCII art is hidden from screen reader, and is replaced with a visually hidden alternative pass 1.1.1E.

✔ Other image types should use aria-label to describe image to pass 1.1.1E. This will need to be verified with a screen reader for test 4.1.2B.
